• 2 LCD Monitors In The Front
• 2 Seatback Storage Pockets
• 3 12V DC Power Outlets
• 3 12V DC Power Outlets and 6 Interior 120V AC Power Outlets
• 60-40 Folding Split-Bench Front Facing Fold-Up Cushion Rear Seat
• 8 Speakers
• Adaptive Cruise Control with Stop-and-Go
• Cab Mounted Cargo And Cargo Space Lights
• Cargo Area Concealed Storage
• Cargo Features -inc: Tire Mobility Kit
• Compass
• Cruise Control w/Steering Wheel Controls
• Day-Night Auto-Dimming Rearview Mirror
• Delayed Accessory Power
• Digital Appearance
• Driver And Passenger Visor Vanity Mirrors
• Driver Foot Rest
• Driver Information Center
• Driver Seat
• Fade-To-Off Interior Lighting
• Fixed Antenna
• FOB Controls -inc: Keyfob Cargo Access
• FordPass Connect 4G Mobile Hotspot Internet Access
• Front And Rear Map Lights
• Front Center Armrest
• Front Cupholder
• Full Carpet Floor Covering -inc: Carpet Front And Rear Floor Mats
• Full Cloth Headliner
• Full Floor Console w/Locking Storage, Mini Overhead Console w/Storage, 3 12V DC Power Outlets and 6 Interior 120V AC Power Outlets
• HVAC -inc: Underseat Ducts and Console Ducts
• Instrument Panel Bin, Dashboard Storage, Interior Concealed Storage, Driver / Passenger And Rear Door Bins and 2nd Row Underseat Storage
• Locking Glove Box
• Manual Adjustable Front Head Restraints and Manual Adjustable Rear Head Restraints
• Manual Tilt/Telescoping Steering Column
• Outside Temp Gauge
• Passenger Seat
• Perimeter Alarm
• Plastic Floor Trim
• Power 1st Row Windows w/Driver And Passenger 1-Touch Up/Down
• Power Adjustable Pedals
• Power Door Locks w/Autolock Feature
• Power Rear Windows
• Proximity Key For Doors And Push Button Start
• Radio w/Seek-Scan, Clock, Speed Compensated Volume Control, Steering Wheel Controls, Voice Activation, Radio Data System and External Memory Control
• Rear Cupholder
• Remote Keyless Entry w/Integrated Key Transmitter, Illuminated Entry and Panic Button
• Seats w/Leatherette Back Material
• Streaming Audio

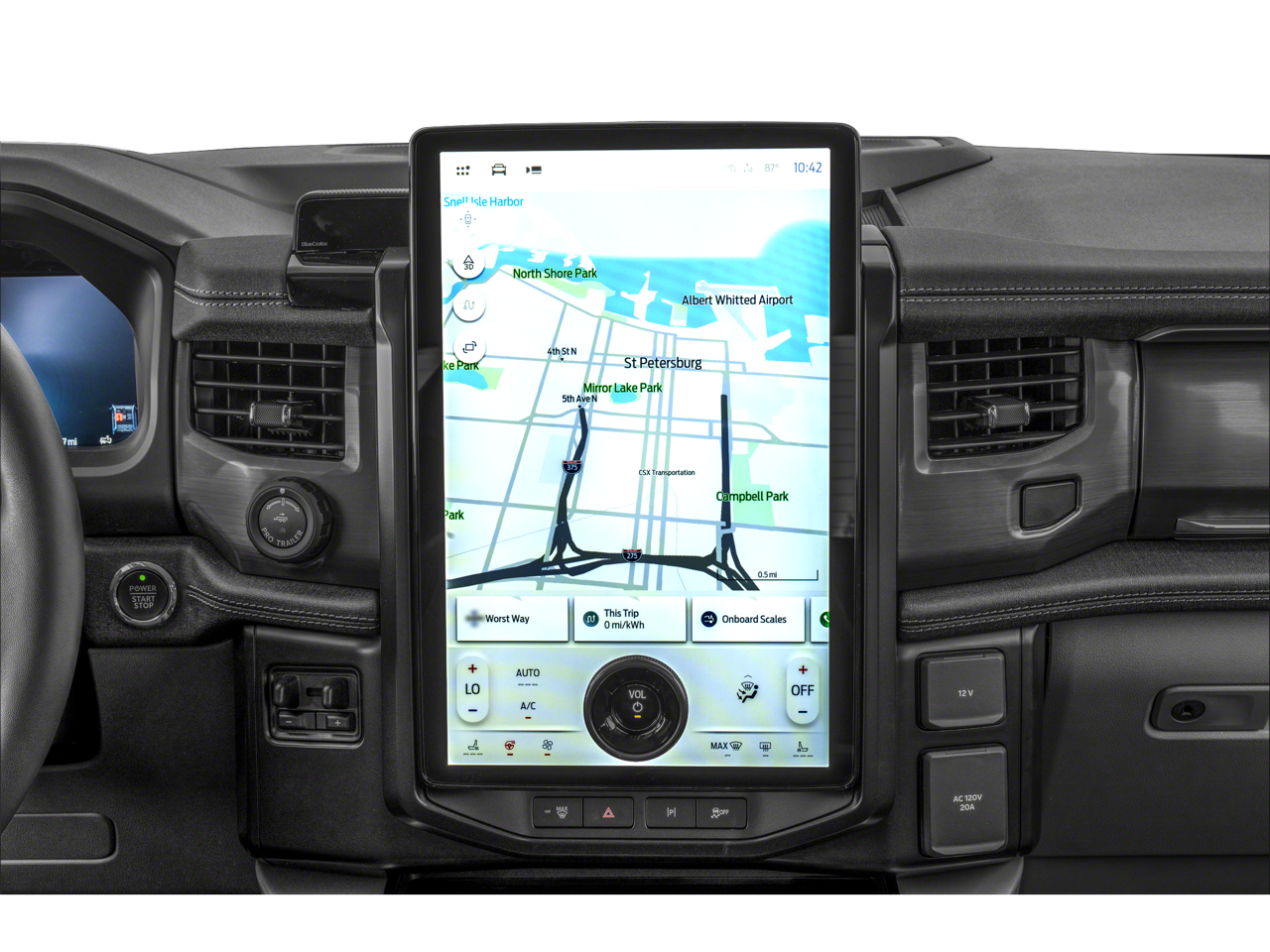

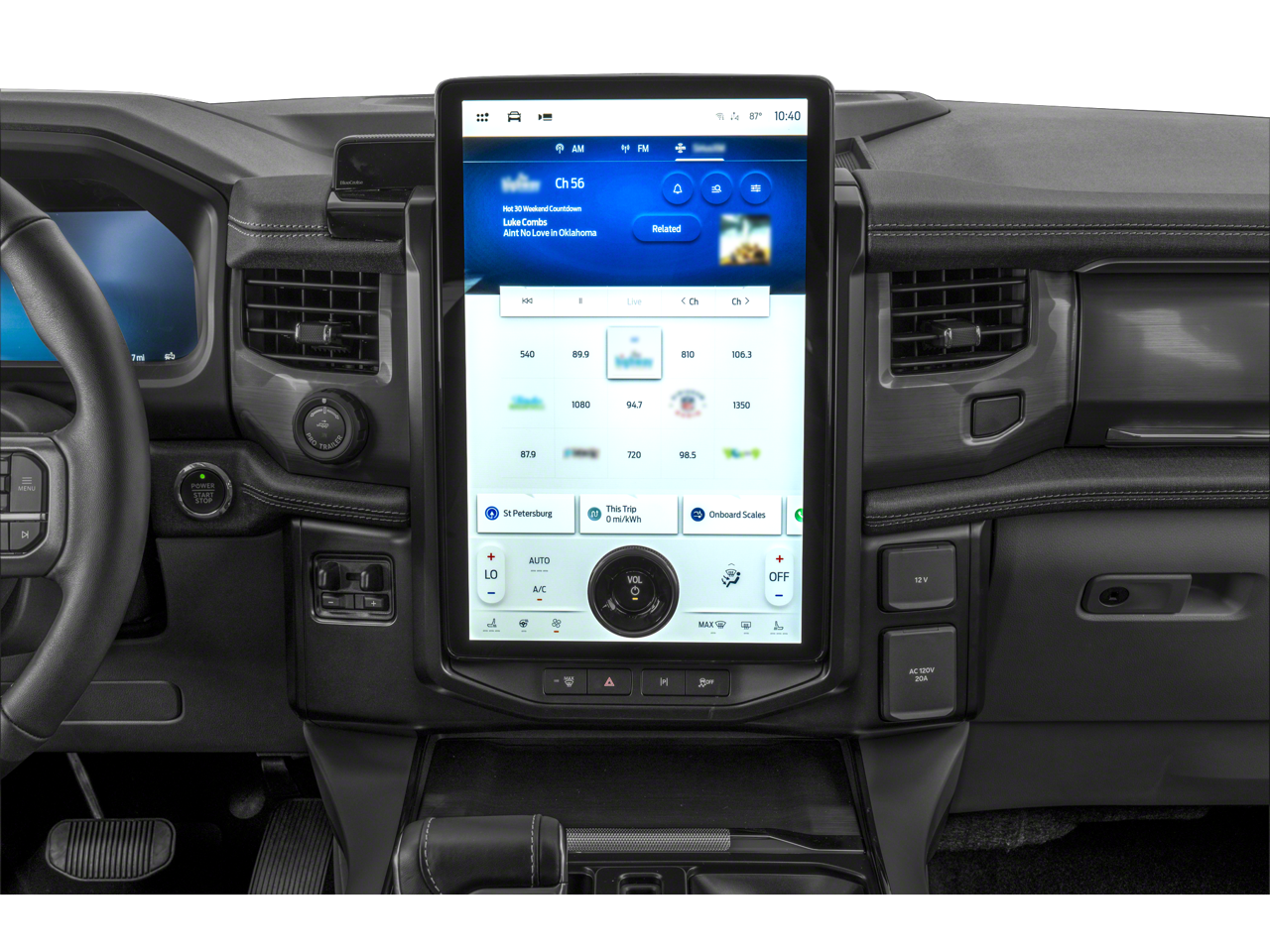

• SYNC 4A w/Enhanced Voice Recognition -inc: 15" LCD capacitive touchscreen w/swipe capability, wireless phone connection, cloud connected, AppLink w/App catalog, 911 Assist, wireless Apple CarPlay and Android Auto compatibility, digital owners manual, adaptive dashcards, personal profiles and conversational voice command recognition, Note: Navigation services require SYNC4 and FordPass Connect (optional on select vehicles), complimentary connect service and the FordPass app (see FordPass Terms for details), Eligible vehicles receive a complimentary 3-year trial of navigation services that begins on the new vehicle warranty start date, Customers must unlock the navigation service trial by activating the eligible vehicle w/a FordPass member account, If not subscribed by the end of the complimentary period, the connected navigation service will revert to a moving-map and active routing will no longer be available, Connected service and features depend on compatible AT&T network availability, Evolving technology/cellular networks/vehicle capability may limit functionality and prevent operation of connected features, FordPass App, compatible w/select smartphone platforms, is available via a download, Message and data rates may apply
• Trip Computer
• Urethane Gear Shifter Material
• Voice Activated Dual Zone Front Automatic Air Conditioning

• 1657# Maximum Payload
• 9.61 Axle Ratio
• Battery w/Run Down Protection
• Class IV Towing Equipment -inc: Hitch and Trailer Sway Control
• Double Wishbone Front Suspension w/Coil Springs
• Electric Power-Assist Speed-Sensing Steering
• Front And Rear Anti-Roll Bars
• Full-Time All-Wheel
• GVWR: 8,550 lbs
• HD Gas-Pressurized Front Shock Absorbers and Gas-Pressurized Rear Shock Absorbers
• Lithium Ion (li-Ion) Traction Battery w/14.6 Hrs Charge Time
• Permanent Locking Hubs
• Regenerative 4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs, Brake Assist, Hill Hold Control and Electric Parking Brake
• Trailer Wiring Harness
• Trailing Arm Rear Suspension w/Coil Springs

• ABS And Driveline Traction Control
• AdvanceTrac w/Roll Stability Control Electronic Stability Control (ESC) And Roll Stability Control (RSC)
• Aerial View Camera System
• Airbag Occupancy Sensor
• BLIS with Trailer Tow Coverage Blind Spot
• Cargo Bed Camera
• Collision Mitigation-Front
• Cross-Traffic Alert
• Driver And Passenger Knee Airbag
• Driver Monitoring-Alert
• Dual Stage Driver And Passenger Front Airbags
• Dual Stage Driver And Passenger Seat-Mounted Side Airbags
• Evasion Assist
• Ford Co-Pilot360 - Lane-Keeping Assist Lane Departure Warning
• Ford Co-Pilot360 - Lane-Keeping Assist Lane Keeping Assist
• Front And Rear Parking Sensors
• Front Camera w/Washer
• Left Side Camera
• Mykey System -inc: Top Speed Limiter, Audio Volume Limiter, Early Low Fuel Warning, Programmable Sound Chimes and Beltminder w/Audio Mute
• Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point, Height Adjusters and Pretensioners
• PCA with AEB and Intersection Assist
• Rear Child Safety Locks
• Reverse Camera Back-Up Camera
• Right Side Camera
• Safety Canopy System Curtain 1st And 2nd Row Airbags
• Side Impact Beams
• Tire Specific Low Tire Pressure Warning

ENGINE: DUAL EMOTOR - EXTENDED RANGE BATTERY

• single onboard charging level 2 peak charging rate of 11.5kW and 123 kWh usable capacity extended range battery (STD)

• ENGINE: DUAL EMOTOR - EXTENDED RANGE BATTERY -inc: single onboard charging level 2 peak charging rate of 11.5kW and 123 kWh usable capacity extended range battery (STD)
• Electric Motor
• All Wheel Drive
• Tow Hitch
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Brake Assist
• Lithium Ion Traction Battery
• Aluminum Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Tow Hooks
• Heated Mirrors
• Power Mirror(s)
• Integrated Turn Signal Mirrors
• Rear Defrost
• Privacy Glass
• Intermittent Wipers
• Variable Speed Intermittent Wipers
• Running Boards/Side Steps
• Power Door Locks
• Daytime Running Lights
• Automatic Headlights
• LED Headlights
• Automatic Highbeams
• AM/FM Stereo
• Premium Sound System
• Satellite Radio
• HD Radio
• Requires Subscription
• MP3 Capability
• Steering Wheel Audio Controls
• Auxiliary Audio Input
• Power Driver Seat
• Power Passenger Seat
• Bucket Seats
• Heated Front Seat(s)
• Driver Adjustable Lumbar
• Passenger Adjustable Lumbar
• Premium Synthetic Seats
• Pass-Through Rear Seat
• Rear Bench Seat
• Adjustable Steering Wheel
• Trip Computer
• Power Windows
• WiFi Hotspot
• Heated Steering Wheel
• Keyless Entry
• Power Door Locks
• Keyless Entry
• Power Door Locks
• Keyless Start
• Cruise Control
• Adaptive Cruise Control
• Climate Control
• Multi-Zone A/C
• A/C
• Auto-Dimming Rearview Mirror
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Floor Mats
• Smart Device Integration
• Requires Subscription
• Keyless Start
• Navigation System
• MP3 Capability
• Steering Wheel Audio Controls
• Bluetooth® Connection
• Telematics
• Auxiliary Audio Input
• Smart Device Integration
• Requires Subscription
• Power Windows
• Power Door Locks
• Adjustable Pedals
• Trip Computer
• Security System
• Cruise Control Steering Assist
• Traction Control
• Stability Control
• Traction Control
• Front Side Air Bag
• Blind Spot Monitor
• Cross-Traffic Alert
• Rear Collision Mitigation
• Lane Departure Warning
• Lane Keeping Assist
• Lane Departure Warning
• Front Collision Mitigation
• Driver Monitoring
• Evasion Assist
• Aerial View Display System
• Rear Parking Aid
• Tire Pressure Monitor
• Driver Air Bag
• Passenger Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag Sensor
• Knee Air Bag
• Child Safety Locks
• Back-Up Camera

• Mileage
• EPA MPG Equivalent - City: - TBD -
• EPA MPG Equivalent - Hwy: - TBD -
• EPA MPG Equivalent - Combined: - TBD -
• Estimated Battery Range (mi): 300.0
• Traction Battery
• Usable/net Traction Battery Capacity (kWh): 123.0
• Weight Information
• Base Curb Weight (lbs): 6893
• Gross Axle Wt Rating - Front (lbs): 4050
• Gross Axle Wt Rating - Rear (lbs): 4800
• Curb Weight - Front (lbs): 3461
• Curb Weight - Rear (lbs): 3432
• Gross Vehicle Weight Rating Cap (lbs): 8550
• Gross Combined Wt Rating (lbs): 15000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7700
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 770
• Maximum Trailering Capacity (lbs): 7700
• Suspension
• Suspension Type - Front: Double Wishbone
• Suspension Type - Rear: Trailing Arm
• Spring Capacity - Front (lbs): 4050
• Spring Capacity - Rear (lbs): 4800
• Axle Type - Front: Independent
• Axle Type - Rear: Independent
• Axle Capacity - Front (lbs): 3900
• Axle Capacity - Rear (lbs): 4150
• Axle Ratio (:1) - Front: 9.61
• Axle Ratio (:1) - Rear: 9.61
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14
• Rear Brake Rotor Diam x Thickness (in): 13.8
• Tires
• Front Tire Size: P275/60SR20
• Rear Tire Size: P275/60SR20
• Front Tire Capacity (lbs): 4050
• Rear Tire Capacity (lbs): 4498
• Wheels
• Front Wheel Size (in): 20 X 8.5
• Rear Wheel Size (in): 20 X 8.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Steering
• Steering Type: Rack-Pinion
• Turning Diameter - Curb to Curb (ft): 47.8
• Exterior Dimensions
• Wheelbase (in): 145
• Length, Overall (in): 231.7
• Width, Max w/o mirrors (in): 79.9
• Height, Overall (in): 77.2
• Overhang, Front (in): 37.8
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 66
• Cargo Box Width @ Top, Rear (in): 65.2
• Cargo Box Width @ Floor (in): 65.2
• Cargo Box Width @ Wheelhousings (in): 50.6
• Cargo Box (Area) Height (in): 21.4
• Tailgate Width (in): 60.3
• Cargo Volume (ft³): 52.8
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 40.8
• Front Leg Room (in): 43.9
• Front Shoulder Room (in): 66.7
• Front Hip Room (in): 62.5
• Second Head Room (in): 40.4
• Second Leg Room (in): 43.6
• Second Shoulder Room (in): 66
• Second Hip Room (in): 62.6
• Summary
• Vehicle Name: Ford F-150 Lightning
• Body Style: SuperCrew Cab
• Body Code: T
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
